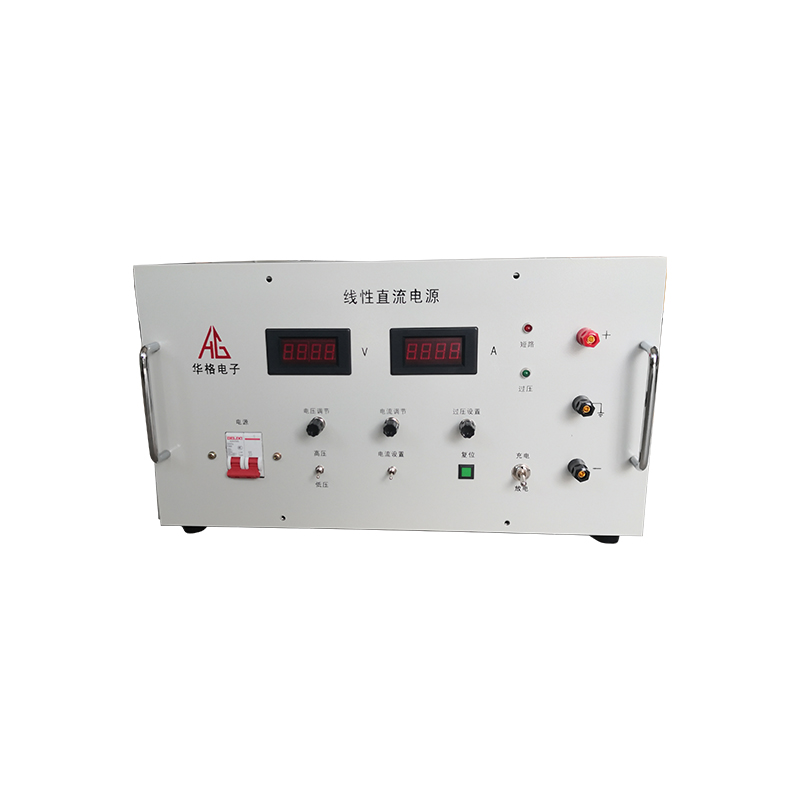

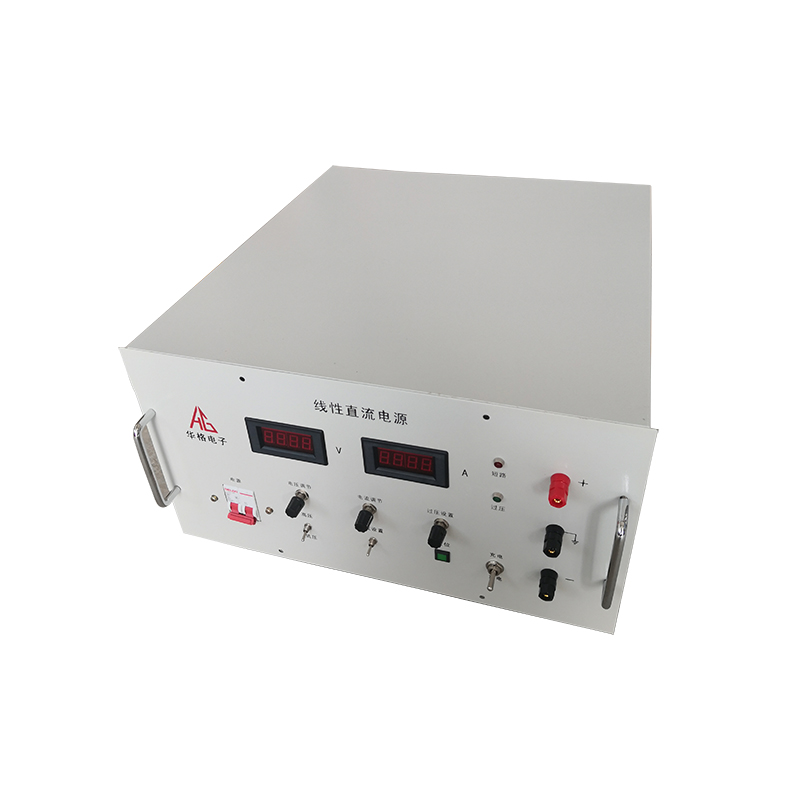

This series of linear DC power supply has the output characteristics of high output power density and fast output response. The output current and voltage can also be set arbitrarily, which has strong flexibility. Compared with switching DC power supply, linear DC power supply has the advantages of fast response speed and small output ripple. It is suitable for sophisticated charging, parameter testing and withstand voltage life testing of various specifications of electrolyte capacitors and bile electrolytic capacitors. It has overvoltage and short circuit functions, which well protects the instrument and operators.

Technical indicators

1. Output voltage of this series of power supply: 0.0v ~ maximum voltage continuously adjustable;

2. Output current of this series of power supply: 0.00a ~ ~ maximum current continuously adjustable;

3. Voltage display error: ≤± 0.5% (output > 20% of full scale);

4. Current display error: ≤± 0.5% (output > 20% of full scale);

5. It has the functions of voltage and current stabilization, and has its own internal discharge function;

6. Load effect (current regulation rate): constant voltage ≤ 0.3% + 10mV;

7. Source effect (voltage regulation rate): constant voltage ≤ 0.2% + 10mV;

8. Ripple: ≤ 0.01% output voltage (effective value)

9. It has overvoltage and short circuit alarm functions.

10. Working mode: continuous work;
